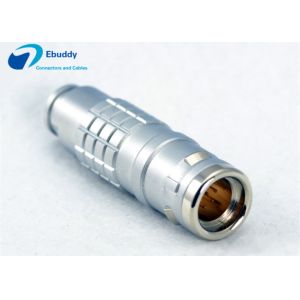

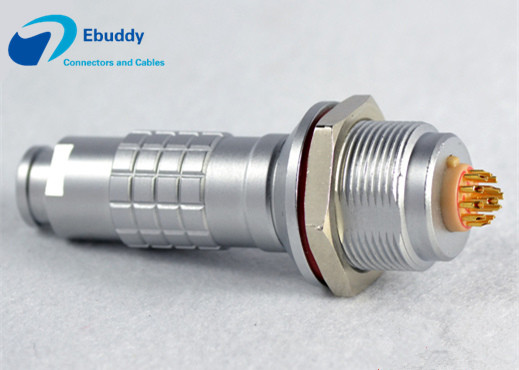

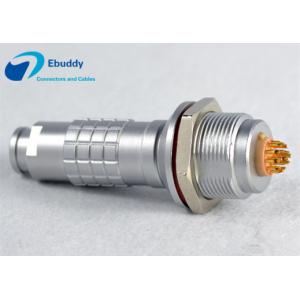

Lemo FGG EGG 1K 16 Pin Circular Connectors

    Buy cheap Lemo FGG EGG 1K 16 Pin Circular Connectors from wholesalers

    Buy cheap Lemo FGG EGG 1K 16 Pin Circular Connectors from wholesalers
    • Buy cheap Lemo FGG EGG 1K 16 Pin Circular Connectors from wholesalers
    • Buy cheap Lemo FGG EGG 1K 16 Pin Circular Connectors from wholesalers

    Lemo FGG EGG 1K 16 Pin Circular Connectors

    Ask Lasest Price
    Brand Name : OEM
    Model Number : FGG.1K.316.CLAD42Z
    Certification : CE.ROHS
    Price : 0.5USD
    Payment Terms : Western Union, T/T,Paypal
    Supply Ability : 10000pcs per month
    • Product Details
    • Company Profile

    Lemo FGG EGG 1K 16 Pin Circular Connectors


    Lemo K series male and female connector Lemo FGG EGG 1K 16pin circular connectors​


    Specifications:

    • Type: Lemo Solder
    • Application: Audio & Video
    • Gender: Male and Female
    • Color: Silver
    • Material: Zinc Alloy Copper Alloy
    • Connector type: Male Terminals
    • Certificate: CE, UL
    • Pin: 2-32pin
    • Warranty:5000times Mating
    • Keywords: Quick Release Connectors,lemo bnc connector
    • Item name:Cable Joint Connector,lemo bnc connector
    • Contact Material: Brass

    Technical Parameter:

    Color:Silver
    Material:Zinc alloy with nikelplate
    Coupling:Threaded coupling
    Cable diameter:10mm
    Termination:Solder
    Pin number:16pins
    Surface treatment:Nickel Plating
    Mating cycles:5000 times pull and push
    Humidity:At tempetature 60°, the max humidity of up to 95%
    Temperature range:-45 °- +125°
    Vibration:10-20000Hz,15g
    Mechanical shock:100g.6ms
    Smoke corrosion:>48h
    Protection class:IP65-68

    Size and drawing:
